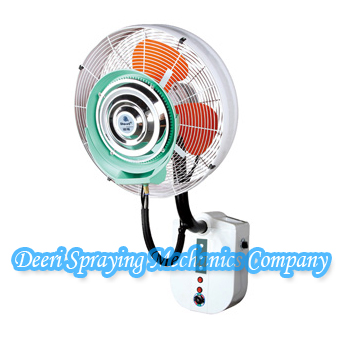

  • Wall mounted misting fan with rain protection and remote type500

  • Column:Spray fan
  • Model:500GQ-YK
Misting fan is suitable for all kind of the places of sunstroke prevention and bringing down the temperature, water under the action of the rotating disc and spray fog particles dispersion device become minuteness mist, mist ion in the process of releasing,absorb the temperature quickly and with air purification at the same time.

Details


This upscale wall mounted misting fan has colourful design, equips with high sensitivity infrared telecontrol can correctly receives the signal in 10m, all functions are available done via a remote as normal customer’s need.

This outdoor telecontrol misting fan running stably,uses muting design, no extra noise,all details were considered carefully and just working by the normal tap water.

Principle of operation:
Taking the latest direct centrifugal atomization technology, through wet mist of the spray spread rapidly, the evaporation takes away the heat from the air quickly, thus reduce the environment temperature, within the range of the spraying area,could be cooler 6 ~ 8 ° C

Applications:

High quality misting fan with rain protection and remote control, it is the first development and design by Deeri Spraying Mechanics Co.,Ltd.Guang Zhou,China, also the first to appear on the market with important significance of innovation. This outdoor fan has fashion, great looking design,it’s a perfect cooling equipment for indoor or outdoor restaurants, golf courses, many kinds of exhibition centers, tourist attractions, activity ceremonies, commercial streets,etc.

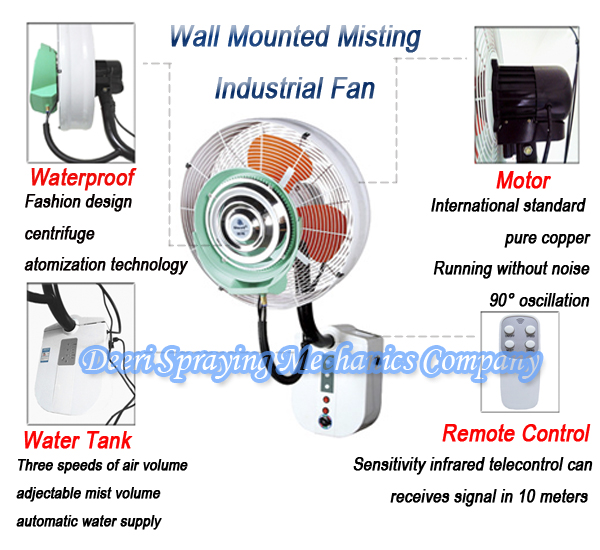

1.The mist can be adjusted.

2.Just use normal water.No nozzles,no blocking.

3.Quick water connector, airlines electric plugs.

4.New sealing motor, waterproof, dustproof protect.

5.Three different speeds.

6.90°oscillation,25°adjusted elevation angle.

7.Wall mounted design with telecontrol and automatic water supply

8.International standards for all copper motor last over 4 years.




Model

Size of blade

Voltage

Frequency

Power

Water tank

Maximum airflow

Maximum revolving speed

Spray capacity

Effective wind range

Maximum distance

Acreage

500GQ-YK

500mm

220V

50Hz

195w

20L

138m3/min

1400R/min

0~6.5L/H

6m

8m

40m2




Wall mounted misting fan with rain protection and remote type500

Wall mounted misting fan with rain protection and remote type500


Brand name:Deeri

Colour: As the pictures

Material: Stainless steel

Package:Carton box

Port:Guangzhou

Payment terms: Negotiable

Place of origin:Guangzhou,China.
