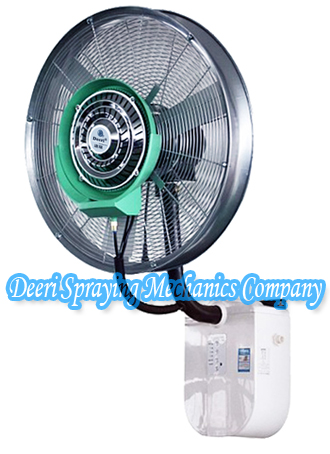

  • Wall mounted misting fan with rainproof and remote control type600

  • Column:Spray fan
  • Model:600GQ-YK
This model is the first design and develop new product in our company also the earliest apprear on the market with important significance, This outdoor fan has fashion great looking design,it’s a perfect cooling equipment for indoor or outdoor restaurants, golf courses, many kinds of exhibition centers, tourist attractions, activity ceremonies, commercial streets,etc.

Details

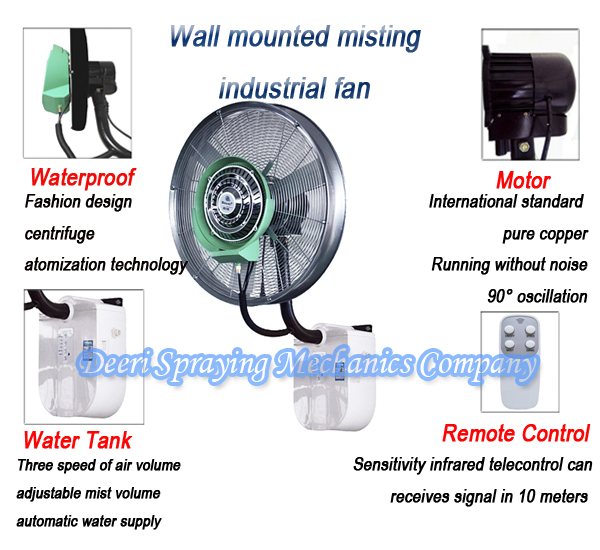

This upscale wall mounted misting fan has colourful design, equips with high sensitivity infrared telecontrol electromagnetic induction,can correctly receives the signal in 10m. All functions are available done through a remote as normal customer's need.
This outdoor telecontrol misting fan running stably,uses muting design, no extra noise,all details were considered carefully and just working by the normal tap water.

Principle of operation:
Taking the latest direct centrifugal atomization technology, through wet mist of the spray spread rapidly, the evaporation takes away the heat from the air quickly, thus reduce the environment temperature, within the range of the spraying area,could be cooler 6 ~ 8 ° C
Applications:
High quality misting fan with rain protection and remote control, it is the first development and design by Deeri Spraying Mechanics Co.,Ltd.Guang Zhou, China ,also the first to appear on the market with important significance of innovation. This outdoor fan has fashion great looking design,it’s a perfect cooling equipment for indoor or outdoor restaurants, golf courses, all kinds of exhibition centers, tourist attractions, activity ceremonies, commercial streets,etc.


1.The mist can be adjusted.

2.Just need normal water .No nozzles, no need to afraid of blocking.

3.Fast water connector, airlines electric plugs.

4.New sealing motor, waterproof, dustproof protection.

5.Three different speeds.

6.90°shaking angle,25°adjusted elevation.

7.Wall mounted design with telecontrol and automatic water supply.

8.International standards for all copper motor last over 4 years.




Model

Size of  blade

Voltage

Frequency

Power

Water tank

Maximum airflow rate

Maximum revolving speed

Spray capacity

Effective range

Maximum distance

Acreage

600GQ-YK

600mm

220V

50Hz

215w

20L

173m3/min

1400R/min

0~6.5L/H

6m

8m

50m²




600GQ-YK



600GQ-YK


Brand name:Deeri

Colour: As the pictures

Material: Stainless steel

Package:Carton box

Port:Guangzhou

Payment terms: Negotiable

Place of origin:Guangzhou,China.
